The highest accuracy can reach ± 1 micrometer, using a fully closed-loop operation control system to achieve high-precision, high-efficiency, and robust positioning motion
The minimum IndexTime can reach 240 milliseconds, with a large base and high rigidity structure, achieving high load, low vibration, and fast tuning motion
The maximum lifting force is 750kgf, and the Z-axis four bar integrated support achieves the minimum deformation under high load or unbalanced load conditions
Testing temperature range -40 ° C to 200 ° C, independently developing various CHUCKs to solve core process problems and achieve precise temperature control
FUNCTION
Wafer Alignment Function
Wafer ID OCR function
Compatible with up to 2 million dies
Adjustment and retesting, compatible with mainstream foreign models in both directions
Quickly generate a map from guided files
Repeat Touch function
Needle Alignment Function
PMI needle mark detection function
GPIB communication
Holding SECS/GEM communication protocol
Offline editing of Map and Die attributes
Fully compatible with the Map file format of mainstream foreign models
|
◆規格參數：
|
|
|
|

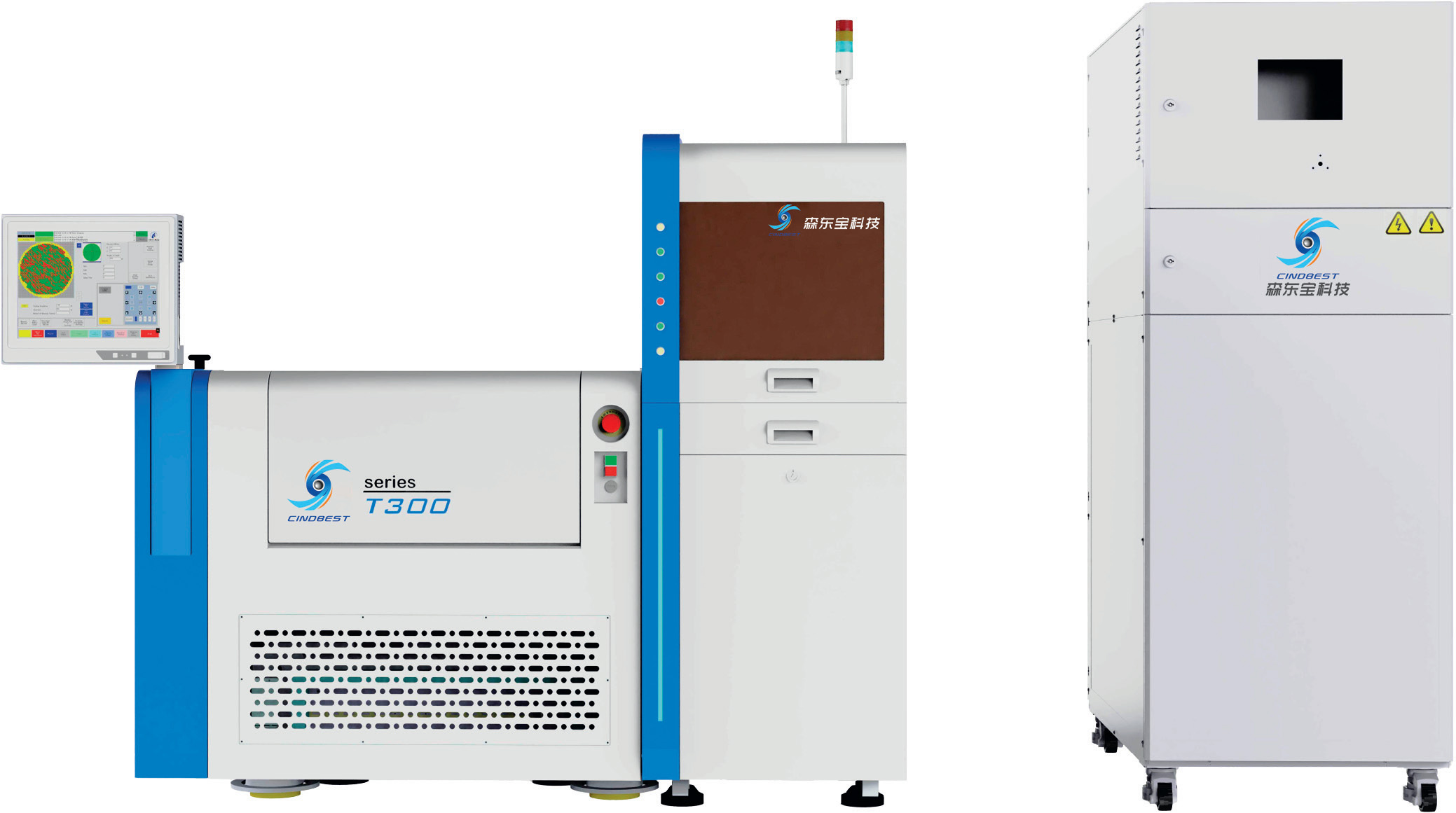

C300
|
H300
|
T300
|
M300
|
|
適用場合
|
通用機型
|
通用機型
|
適用于三溫
|
適用于存儲
|
|
適用晶圓尺寸
|
12寸/8寸
|
|
適用晶圓厚度*
|
200~2200μm
|
200~2200μm
|
200~2200μm
|
200~2200μm
|
|
綜合精度
|
XY軸：±1μm
ZF軸：±2μm
|
XY軸：±1μm
ZF軸：±2μm
|
XY軸：±1μm
ZF軸：±2μm
|
XY軸：±1μm
ZF軸：±2μm
|
|
Index time
|
240ms
(X/Y:10mm,Z:0.5mm)
|
240ms
(X/Y:10mm,Z:0.5mm)
|
240ms
(X/Y:10mm,Z:0.5mm)
|
240ms
(X/Y:10mm,Z:0.5mm)
|
|
針測壓力
|
250kgf
|
250kgf
|
250kgf
|
750kgf
|
|
測試溫度*
|
常溫
|
常溫~150℃
|
-55~200℃
|
常溫~150℃
|
|
測試機對接方式*
|
Cable,Hard Docking,Direct
Docking
|
Cable,Hard Docking,Direct
Docking
|
Cable,Hard Docking,Direct
Docking
|
Hinge,Auto-leveling
|
|
通訊接口
|
GPIB,RS232
|
GPIB,RS232
|
GPIB,RS232
|
GPIB,RS232
|
|
設備尺寸
|
1680mm(W)*1890mm(D)*14
90mm(H)
|
1680mm(W)*1890mm(D)*14
90mm(H)
|
1680mm(W)*2080mm(D)*14
90mm(H)
|
2000mm(W)*1890mm(D)*14
90mm(H)
|
|
設備重量
|
2000kg
|
2000kg
|
2000kg
|
2200kg
|
|
電力要求
|
220VAC1.0KVA
|
220VAC 2.0KVA
|
220VAC5.7KVA
|
220VAC 2.0KVA
|
|
壓縮空氣氣壓
|
≥0.6MPa
|
≥0.6MPa
|
≥0.6MPa
|
≥0.6MPa
|
|
真空氣壓
|
≤-60kPa
|
≤-60kPa
|
≤-60kPa
|
≤-60kPa
|
|
|
|
|
※支持伯努利手指，滿足薄片要求 ※支持溫度定制-60℃ ※支持自動換卡 (APC) ※支持加裝FFU, 滿足高潔凈度要求
|
|
|
C200
|
H200
|
T200
|
T200HV
|
|
適用場合
|
通用機型
|
通用機型
|
適用于三溫
|
適用于三代半
|
|
適用晶圓尺寸
|
8寸/6寸/5寸/4寸
|
|
適用晶圓厚度*
|
200~2200μm
|
200~2200μm
|
200~2200μm
|
200~2200μm
|
|
綜合精度
|
XY軸：±2μm
ZF軸：±2μm
|
XY軸：±2μm
ZF軸：±2μm
|
XY軸：±2μm
ZF軸：±2μm
|
XY軸：±2μm
ZF軸：±2μm
|
|
Index time
|
250ms
(X/Y:10mm,Z:0.5mm)
|
250ms
(X/Y:10mm,Z:0.5mm)
|
250ms
(X/Y:10mm,Z:0.5mm)
|
250ms
(X/Y:10mm,Z:0.5mm)
|
|
針測壓力
|
150kgf
|
150kgf
|
150kgf
|
150kgf
|
|
測試溫度*
|
常溫
|
常溫~150℃
|
-55~150℃
|
-40~150℃
|
|
測試機對接方式
|
Cable,Hard Docking
|
Cable,Hard Docking
|
Cable,Hard Docking
|
Cable,Hard Docking
|
|
通訊接口
|
GPIB,RS232
|
GPIB,RS232
|
GPIB,RS232
|
GPIB,RS232
|
|
設備尺寸
|
1300mm(W)*1542mm(D)*96
0mm(H)
|
1300mm(W)*1542mm(D)*96
0mm(H)
|
1300mm(W)*1740mm(D)*96
0mm(H)
|
1300mm(W)*1740mm(D)*96
0mm(H)
|
|
設備重量
|
1200kg
|
1200kg
|
1200kg
|
1200kg
|
|
電力要求
|
220VAC1.0KVA
|
220VAC 2.0KVA
|
220VAC5.7KVA
|
220VAC5.7KVA
|
|
壓縮空氣氣壓
|
≥0.6Mpa
|
≥0.6Mpa
|
≥0.6Mpa
|
≥0.6Mpa
|
|
真空氣壓
|
≤-60kPa
|
≤-60kPa
|
≤-60kPa
|
≤-60kPa
|
|
※支持伯努利手指，滿足薄片要求 ※支持溫度定制-60℃ ※支持加裝FFU, 滿足高潔凈度要求
|
|
|
|
